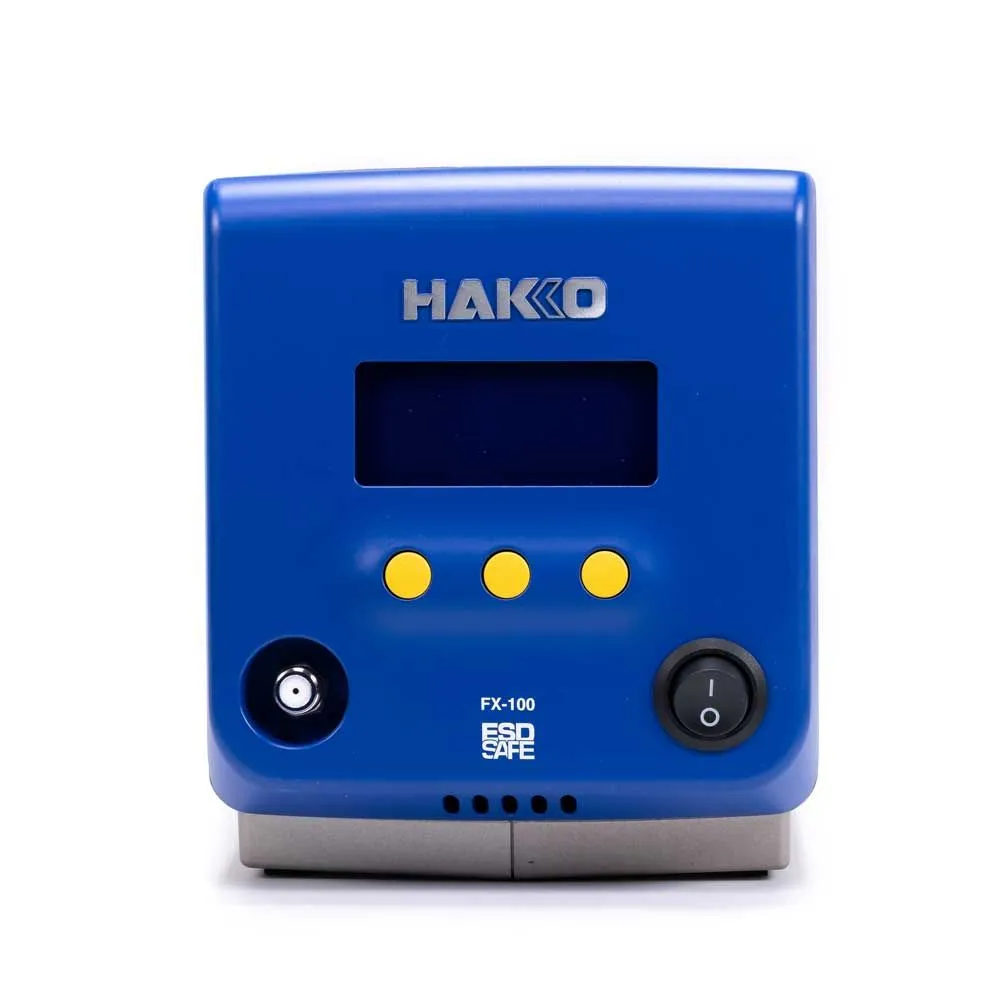

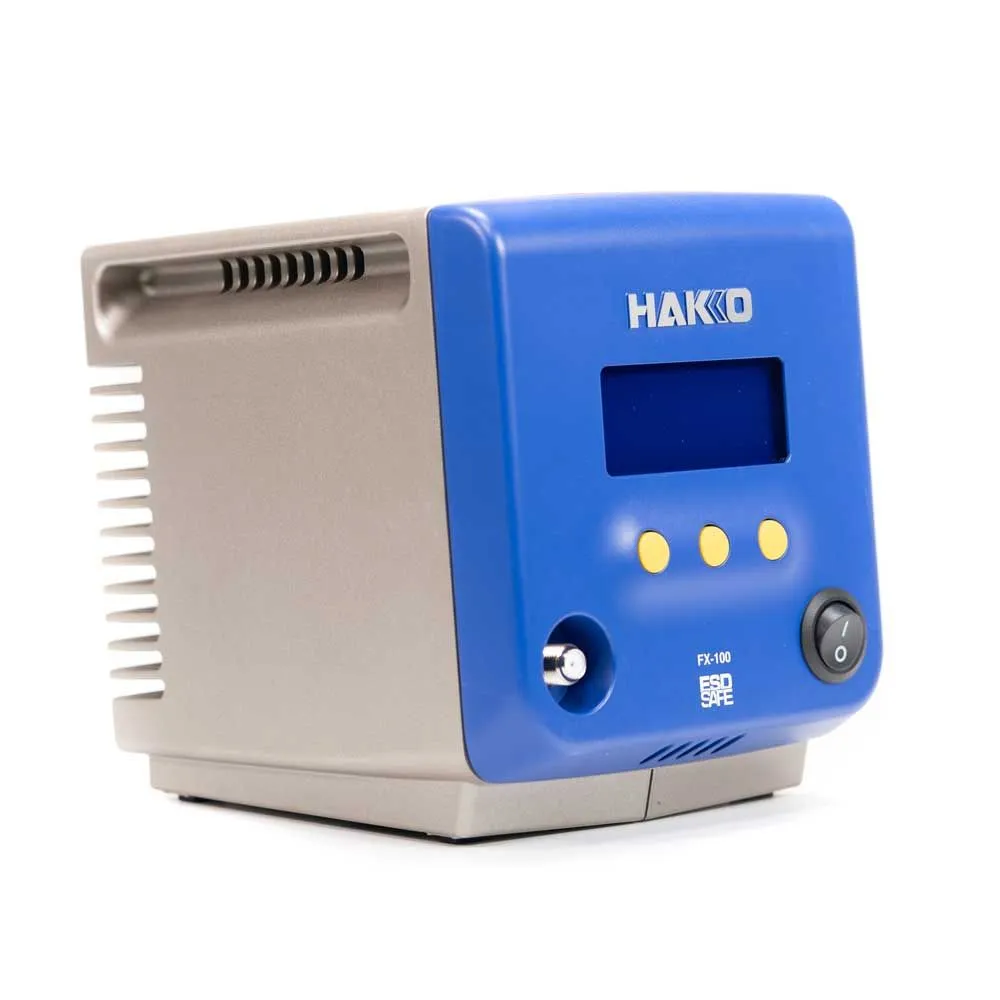

STATION ONLY,w/B2419, FX-100
RF induction heat technology at its best. Designed for fast, reliable, accurate, efficient, and ESD-safe soldering. No calibration required, just turn it on, and in just seconds, you’ll be ready to go. Boost control delivers a boost of extra power when you need it. Its compact design minimizes the workbench footprint.
Note: FX-100 Soldering Station with power cord only. For station with Iron & accessories, please see .
Specifications
| Station | |
| Model Name | FX-100 |
| Part No. | FX100-53 |
| Voltage | 120V |
| Power Consumption | 85W |
| Temperature Stability & Accuracy | Meets or exceeds IPC J-STD-001, ANSDI ESD S20.20 and older MIL-STD's |
| Output Power | 50W |
| Output Frequency | 13.56 MHz |
| Country of Origin | JPN |
| Weight | 6.6 lb. (3 kg.) |
| Dimension (W x H x D) | 5.0 x 5.9 x 6.6 in. (127 x 150 x 167 mm) |
| ESD Safe | Yes |
| Approved | cMETus |
What's in the box?
| Description | Part No. |
| FX-100 | FX100-53 |
| 3-Wire Power Cord | B2429 |
| Instruction Manual | -- |
• User-selectable Power Activity Display providing constant dynamic feedback to the operator about the thermal load on the soldering iron tip
• Password Lockout prevents unauthorized system setup changes
• Tip Sleep function reduces tip temperature to preserve tip life and reduce oxidation when the iron is not in use
• Large Backlit Display provides a clear and simple interface for the operator
• User Programmable Profiles for tip and solder selection
• Activity Monitor provides cumulative data on tip heater loads and tip running time to aid in process control and managing operating costs
• Auto-Power Off safety feature
• Compact design minimizes the workbench footprint

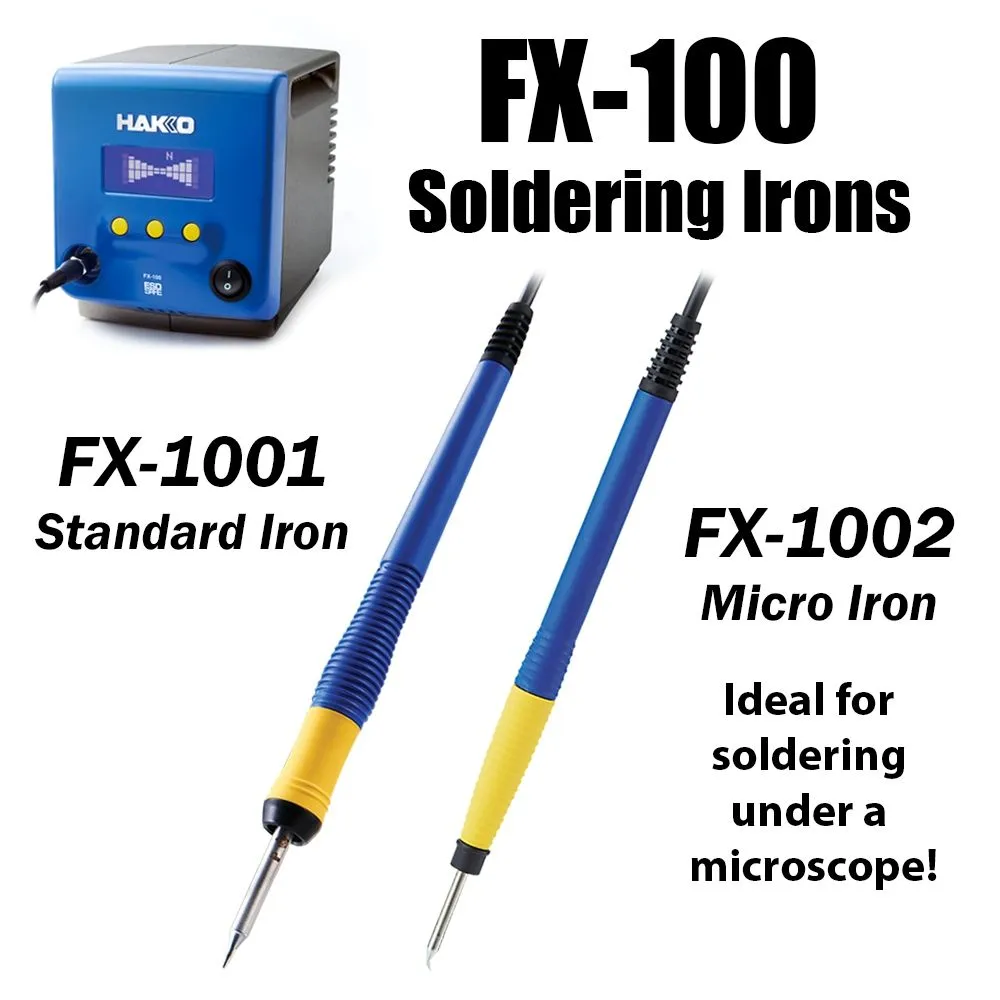

Add-ons for the FX100-53
• FX1001-52 RF Induction Heating Soldering Iron Conversion Kit
• FX1001-51 RF Induction Heating Soldering Iron — Handpiece Only
• FX1002-84 Micro Soldering Iron Conversion Kit
• Micro Soldering Iron — Handpiece Only
